Freight inspection station safety monitoring and management system

This system is to integrate all the freight safety detecting equipment and related information. The information platform is composed of freight train loading video monitoring system, overload detecting monitoring system, rail weighbridge measure monitoring system, freight inspection operation handset system, dangerous cargo shipment safety monitoring , overload inspecting system and other freight safety inspecting system. It is able to make centralized process, display, storage and remote query. Meanwhile, it is able to achieve information sharing among train number automatic recognition system, existing train management information system, TDCS and TPDS.

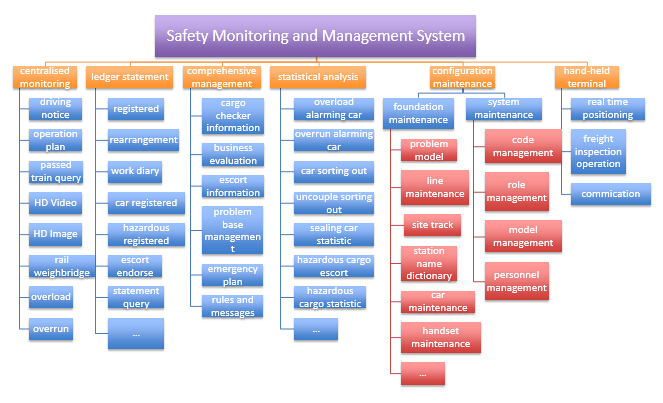

1,system function structure picture

System function structure picture

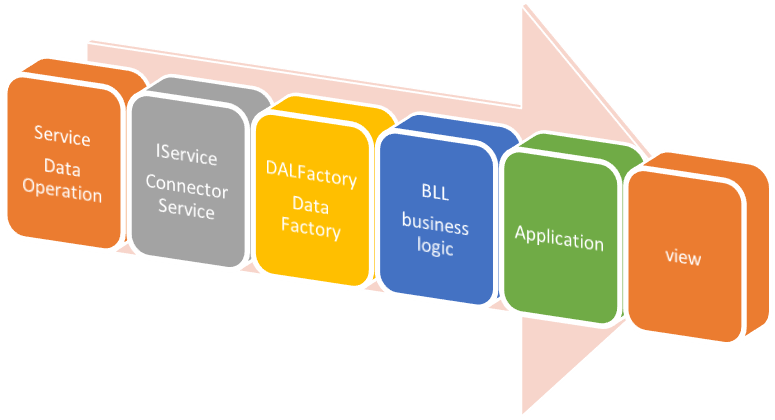

2,System logic structure relation picture

System logic structurer relation picture

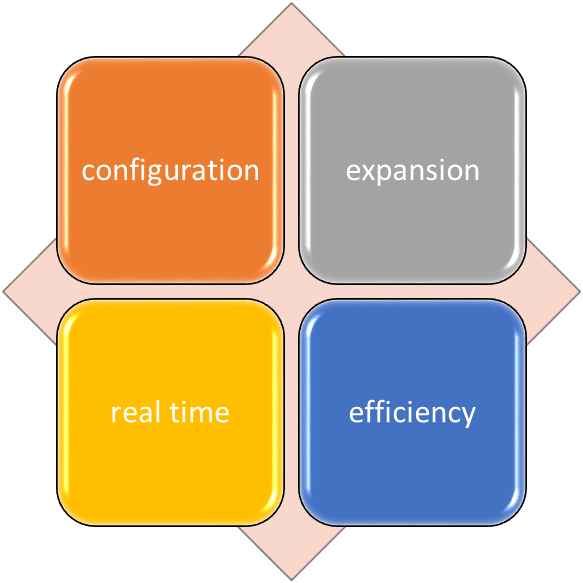

3，system platform features

System platform feature

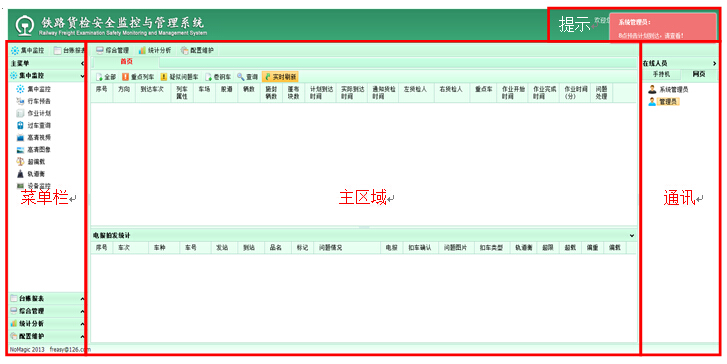

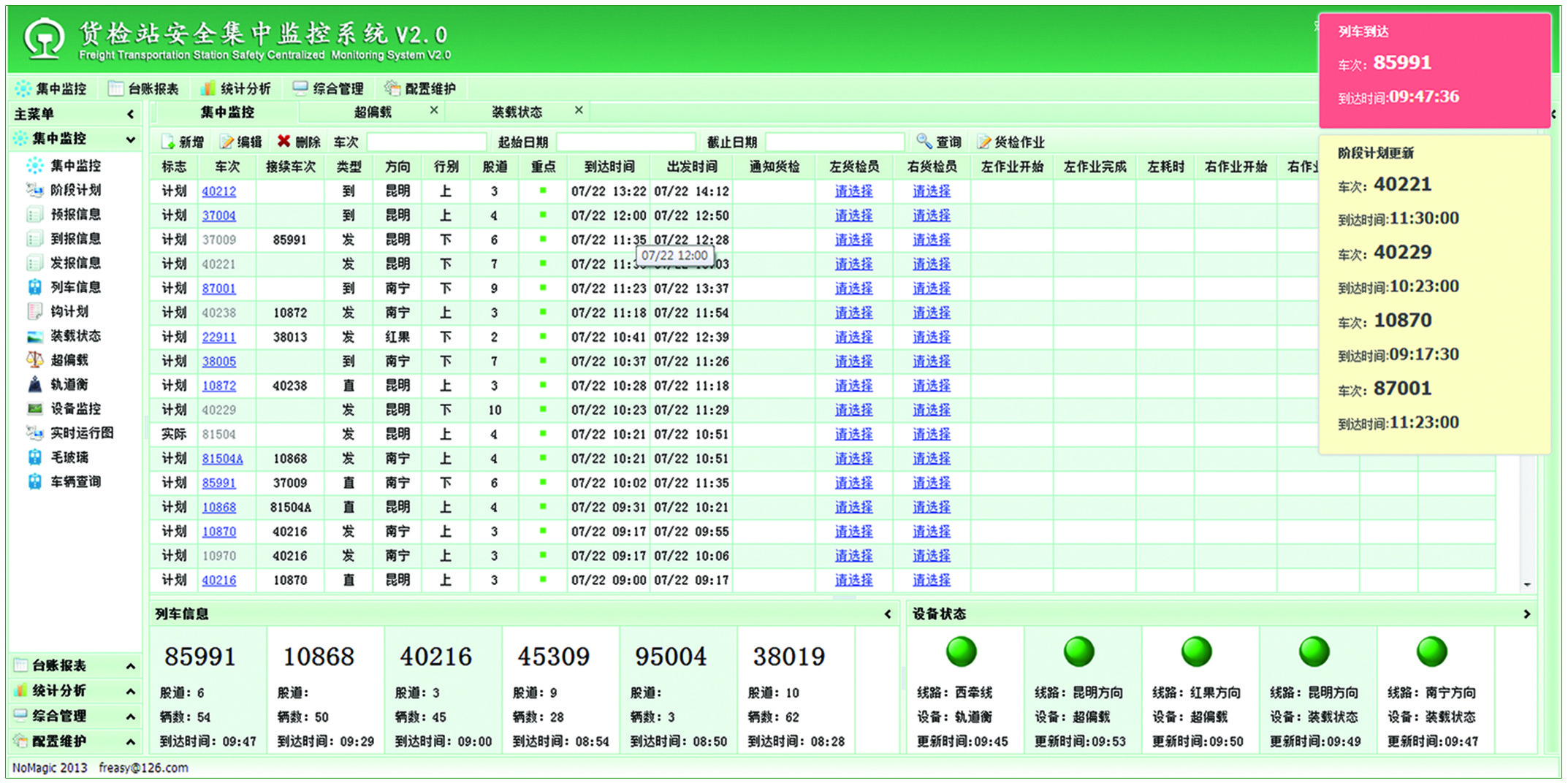

4，Interface Displaying

System Interface including: menu, main area, communication and reminder totally four areas

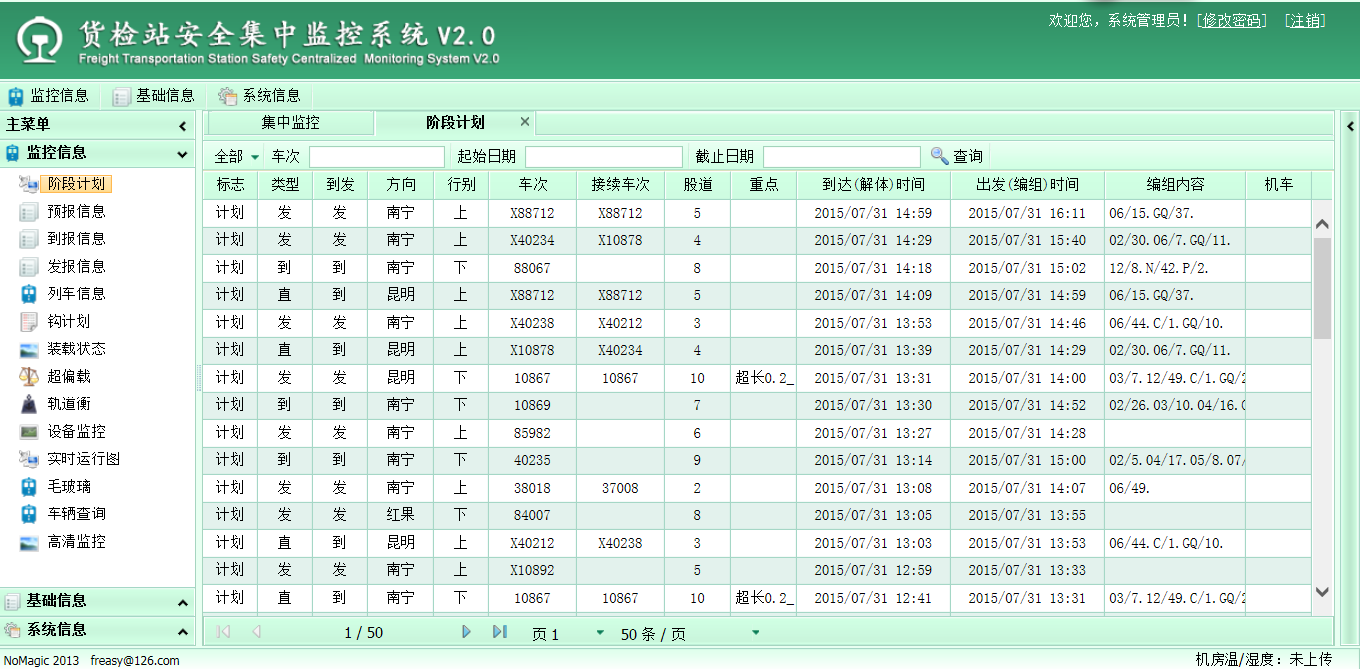

Main menu including stage plan, prediction information, report information, transmitting information, train information, hook plan, loading status, overloading, rail weighbridge and etc.
